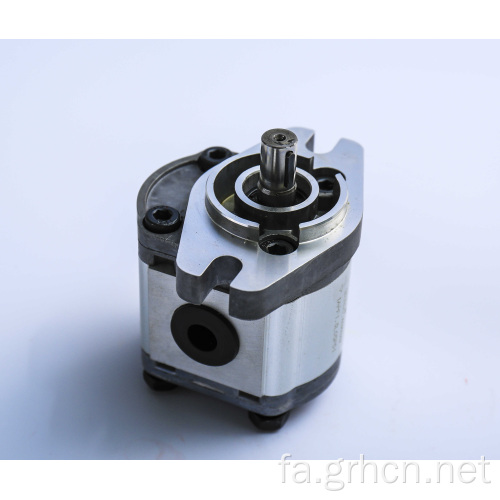

موتور دنده هیدرولیک دو جهته فشار بالا

$20-100 /unit

option	1AMF/2AMF/3AMF
اکنون تماس بگیرید

Warranty: 1 Year

Showroom Location: None

Brand Name: GRH

Place Of Origin: Jiangsu, China

Motor Type: Hydraulic Motors

Displacement: 12cm³

Type: Hydraulic Motors

Material: aluminium alloy

Color: Silver

کاربرد: Industrial Machinery Hydraulic Pump

Standard: SAE

After Warranty Service: Online support

Local Service Location: None

After-sales Service Provided: Online support

شرح

توضیحات محصول

لوازم جانبی

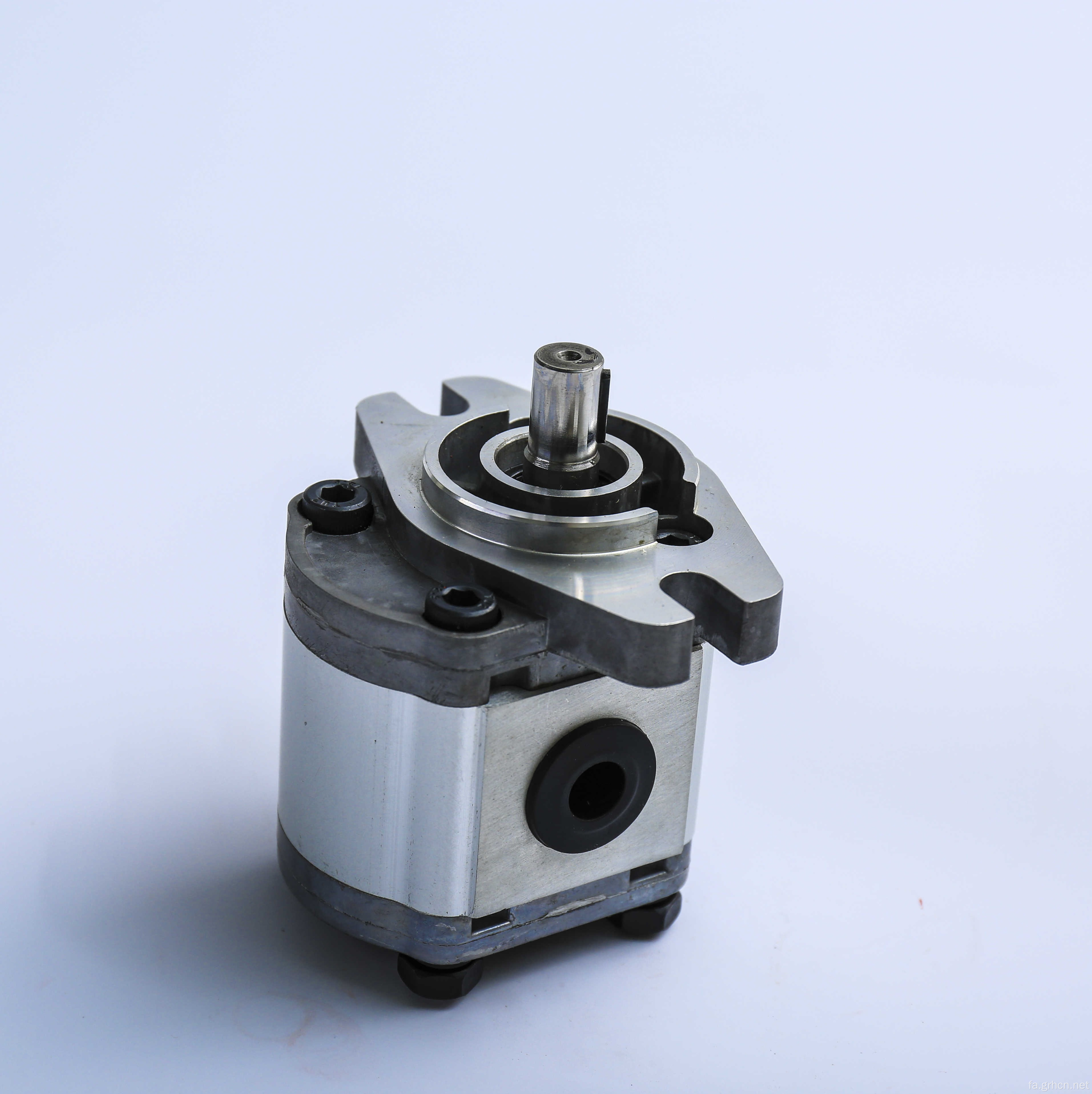

1AMF/2AMF/3AMF series hydraulic gear motor
1AMF/2AMF/3AMF series hydraulic gear motor
specifications
Model	displacement(ml/r)	pressure(bar)		speed(r/min)			Total efficiency	Volumetric Efficiency
Model	displacement(ml/r)	Rate	Max	Rate	Max	Min	Total efficiency	Volumetric Efficiency
1MF/1AMF	1.1 to 5.1	200	250	2000	4000	650	85%	95%
1MF/1AMF	5.1 to 8.5	200	250	2000	4000	650	85%	94%
2MF	4 to 8	200	250	2000	4000	650	85%	95%
2MF	8 to 15	200	250	2000	3500	600	85%	94%
2MF	15 to 20	200	250	2000	3500	600	86%	95%
2MF	21 to 26	200	250	2000	3000	600	82%	95%
2.5MF	10 to 20	200	250	2000	2500	600	86%	94%
2.5MF	20 to 30	200	250	1500	2500	600	82%	95%
3MF	20 to 70	200	250	1500	2500	600	86%	95%
3MF	70 to 89	200	250	1500	2500	600	80%	94%
3.5MF	100 to 115	170	250	1500	2500	500	80%	94%
Gear motors from GRH Hydraulic have a floating bushing feature with automatic axial clearance compensation. The bushings are made with special abrasion resistant material providing improved service life. Precisely machined gears ensure our units provide excellent low noise characteristics. Our cold extrusion motor bodies can endure pressures above 30Mpa. High strength cast iron front & rear covers also enhance our reliability. Our units are widely used in the industrial, mobile, marine and aerospace industries. GRH has 5 series of gear motors – group 1, 2, 2.5, 3 and 3.5. They can be divided into two types. One is the single direction gear motors, the other is the bi-directional gear motors. Normally the design of the single direction gear motor is similar to that of the single direction gear pump with some slight design differences. Therefore, all GRH pumps have a corresponding single direction gear motor. When placing your order, please refer to the ordering code. We now focus on the bi-directional gear motors. This motor has a different sealing structure to the single direction motor. The symmetrical seals (refer to the bottom drawings) separate high pressure from low pressure thus allowing bi-directional operation. The oil from internal leakage returns to tank through the drain port. Normal case drain pressure is limited to 2 bar but 5 bar is allowed for intermittent operation. High quality of the bushings, bearings and seals adds to the outstanding performance of GRH bi-directional gear motors.This motor has internal drain design. The introduction of two check valves directs the internal leakage to the low pressure side of the motor this facilitating bi-directional rotation.
